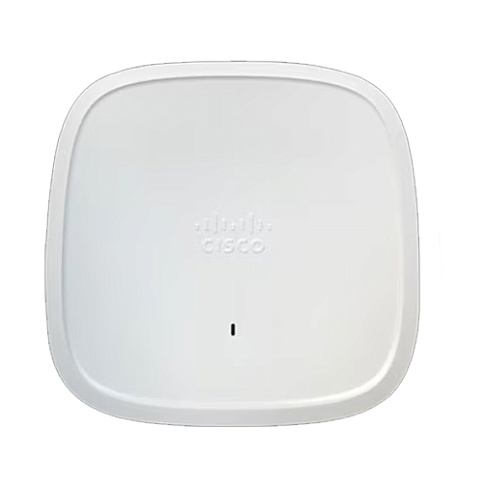

Cisco Catalyst 9130 Series Access Point

The Cisco Catalyst® 9130 Series Access Points, with high-performance Wi-Fi 6 capabilities and innovations in RF performance, security, and analytics, enable end-to-end digitization and help accelerate the rollout of business services by delivering beyond Wi-Fi.

• Resilient: Increased efficiency and cellular-like determinism with up to 4 times the capacity of 802.11ac access points, even in demanding environments
• Secure: Along with built-in security, and Software-Defined Access (SD-Access) support, these access points can deliver standards-compliant, enhanced security on open Wi-Fi
• Intelligent: With multi-RF support paramount for Internet of Things (IoT) devices and expanded ecosystem partnerships, the Cisco Catalyst 9100 portfolio provides unprecedented visibility from mobile devices on the Cisco network, along with enhanced Cisco DNA Assurance

The Cisco Catalyst 9100 Access Points come with built-in security in the form of secure boot, runtime defenses, image signing, integrity verification, and hardware authenticity. The 9100 portfolio, with Wi-Fi 6, provides reliable wireless to meet the needs of your branch and campus network deployments.

Key features

• Next-generation Wi-Fi 6 (802.11ax) access points with 4x4 Multiple-Input Multiple-Output (MIMO) and four spatial streams:
  • 8x8:8 single or dual 4x4:4 on 5 GHz and downlink/uplink Orthogonal Frequency-Division Multiple Access (OFDMA)
  • 4x4:4 on 2.4 GHz with multiuser MIMO (MU-MIMO) and downlink/uplink OFDMA
• Cisco DNA ready
• Cisco RF Application-Specific Integrated Circuit (ASIC) with next-generation Cisco CleanAir® and upgradable RF features
• Built-in Bluetooth Low Energy (BLE) radio (Bluetooth 5.0)
• Multigigabit Ethernet (1 Gbps, 2.5 and 5 Gbps)
• USB
• Supports up to 500 Wi-Fi devices
• IoT ready (BLE)
• Internal and external antenna options
• Operating temperature for 9130I: -32° to 122°F (0° to 50°C)
• Operating temperature for 9130E: -4° to 122°F (-20° to 50°C)
